Ultimo Aggiornamento marzo-18-2016
Prove e regolazioni
This
description was created for the
Windows version of TuneECU and can be applied
largely on the Android
version.

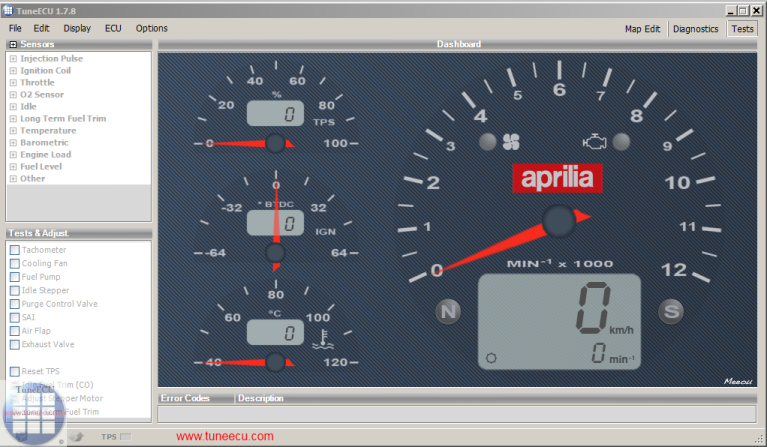

Triumph Aprilia
K?M Benelli
Tutti i sensori sono disabilitati.
il test richiede circa
10 secondi.
Doppio click su ogni caratteri rotonda “ ” di prova:
Test | Description | Triumph | K?M | Aprilia | Benelli Sagem |
Tachometer | Turn on sequentially all lights, engine temperature chart, speed to 100km/h, tachometer to 7500rpm |
Keihin |
Yes |
Yes |
No |
Coling Fan | Starts the cooling fan – listen for the fan noise | Yes | No | Yes | Yes |
Fuel Pump | Prime the fuel pump – listen for the fuel pump noise | Yes | Yes | Yes | Yes |
Idle
Stepper |
Cycle through the idle stepper – listen for a very quiet ticking noise | Yes | Yes | Yes | Yes |
Purge Control Valve |
(Only bikes with charcoal canister) Activate the purge valve – listen for a very quiet noise |
Yes | Yes | Yes | No |
SAI | Secondary air injection system | Yes | Yes | No | No |
Sonde O² | O2 sonde heater - see in Diagnostics | No | Yes | No | No |
Air Flap | Air flap (675 Daytona) located in the air intake towards the front | Yes | No | No | No |
Exhaust Valve |
Exhaust valve (675 Daytona) located in the exhaust | Yes | No | No | No |
Adjust EXPV |
Adjust the exhaust valve – when you change the cable | Yes | No | No | No |
Adjust
TPS / ISCV |
Keihin(exept K?M) It is done in several steps. Read the workshop manual. The third dial shows the voltage (V), allowing the adjustment of the position and adjustment of the controller. | Keihin | No | No | No |
Reset Adaption |
The "Reset adaption" is for example
required when a new map was loaded onto the ECU. Also possible through <Menu>ECU ---- Reset Adaption |
Keihin | No | No | ? |
Ignition Coil | Testing
the coils - listen or observe if sparks will appear at the spark plugs. *** |
No | Yes | No | No |
Injectors | Testing
the injectors - Listen for injector operation |
No | Yes | No | No |
2nd Throttle | Test the 2nd throttle function only (Triumph Rocket & K?M ) | Yes | Yes | No | No |
Reset TPS | Sagem:
Recalibrate the
throttle position sensor, Double-click the Reset TPS button. How to K?M: After downloading a FI-map, start the engine and let runnig it idle (without touching accelerator) for 15 minutes, then turn it off. How to K?M: After downloading a EP-map, Following a mapping download into the ECU, turn off the ignition (key) , turn on the ignition, slowly rotate the Throttle until full throttle then slowly close the throttle, turn off the ignition. |
Sagem | No | Yes | Yes |
Idle
Fuel Trim (CO) Target Idle A/F |
Adjust the idle fuel trim (Triumph
without O²-Sensor
only) Enable the setting function by double-clicking on the arrows. Note: this setting only perform in conjunction with a gas analyzer. |
Sagem | No | Yes | Yes Target Idle A/F |
Adjust Stepper Motor (IACV) |
Triumph
Sagem Double-click to "adjust IACV". It is possible to reset these two last parameters by right-clicking the arrows active during the adjustment. |
Sagem | No | Yes | ? |
Long
Term Fuel Trim |
Adjust the long term fuel trim (Sagem) Triumph models with O²-Sensor only | Sagem | No | Yes | No |
Adjusting the throttle cable |
The idle speed control stepper
motor will be completely retracted and the throttle valves completely
closed.
Switch the ignition switch off,
WITHOUT exiting or disconnecting the software, and adjust the throttle
cable clearance.
|
No | Yes | No | No |
***
Warning: the
metal part of the candle must be in contact with the mass of the bike
under
threat of destruction of the coil. |
Test Tachimetro: attivazione sequenziale di tutte le luci, del grafico a barre della temperatura del motore, tachimetro del veicolo (100 km / h Triumph) e contagiri (7500 rpm Triumph & K?M), (Aprilia 5000 rpm).
Un codice d'errore DTC si registra se viene rilevato un malfunzionamento.
Ventola
di raffreddamento: 3 cicli on-off (Keihin) o 1 ciclo (vedi SAGEM) (ca.
10 secondi di durata)
Pompa
del carburante: funzionamento attivazione e rilascio.
Motore passo-passo del minimo (tratto pieno)
Purge control valve, SAI (solenoide del Secondary Air Injection),Flap Aria di aspirazione a solenoide e valvola di scarico (se presente)

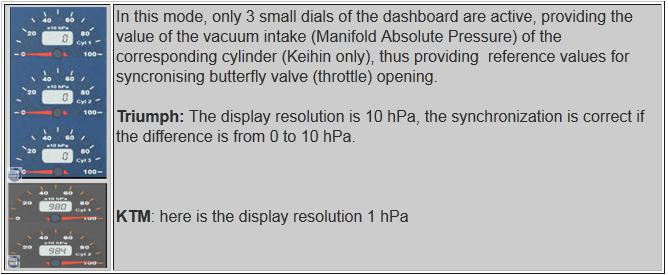

- Impostazioni (Keihin tranne K?M):
Regolazione
exhaust butterfly valve (EXBV) |
(Vedi
manuale d'officina), il terzo quadrante mostra la posizione della
valvola (%) in questa impostazione. |
Adjust
Idle Stepper Control Valve (ISCV) and TPS |
Si
verifica in deversi fasi (vedi manuale officina). |
TPS |
Il terzo quadrante mostra la tensione del TPS (Throttle Position Sensor) per regolare la sua posizione. |
Adaptation Reset
(formerly Reset TPS) |
Vedere la procedura nella sezione Mappa. |
K?M only Adjusting
the throttle cable :
The idle speed control
stepper motor will be completely retracted and the throttle valves
completely closed.
Switch the ignition
switch off, WITHOUT exiting or disconnecting the software, and adjust
the throttle cable
clearance.

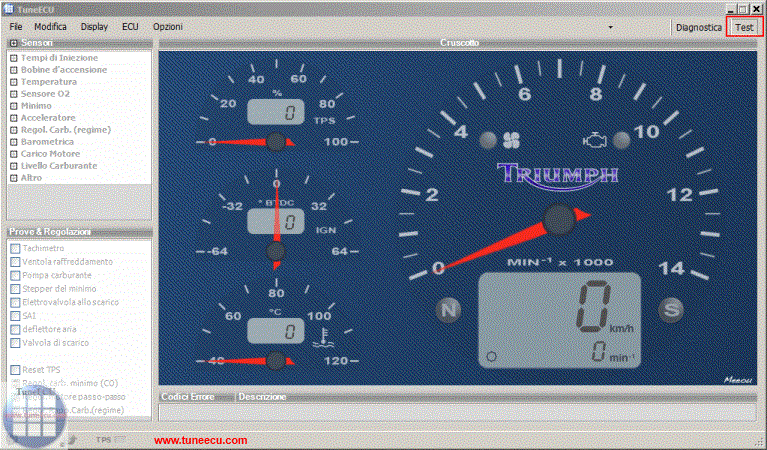

- Impostazioni
(Sagem):
In
questa modalità tutte le letture del quadro strumenti sono inattive.
Tutte le indicazioni relative ad altre aree (sensori, valori di test, codici di errore, voltaggio batteria) sono attivati.
TPS
Reset |
esegue il reset della posizione di chiusura della valvola a farfalla (impostandola su un valore elevato). Dopo questa impostazione, avviare il motore e lasciarlo al minimo senza accelerare per 60 secondi per permettere alla centralina di assumere il valore corretto. |
|
Setting CO |
Fare doppio clic sulla riga per accedere a questa impostazione, per effettuare una regolazione al minimo. |
|
Long Term Fuel Trim |
Fare doppio clic per la regolazione. (Per i modelli dotati di sonde lambda solo) |
|
Idle Stepper (IACV) |
Fare
doppio clic per regolare "IACV". |
E' possibile azzerare gli ultimi due parametri anche tramite il menu contestuale disponibile; fare click con il tasto destro del mouse sulle frecce per regolare l'impostazione. Questa funzione è disponibile solo nella versione Windows di TuneECU.

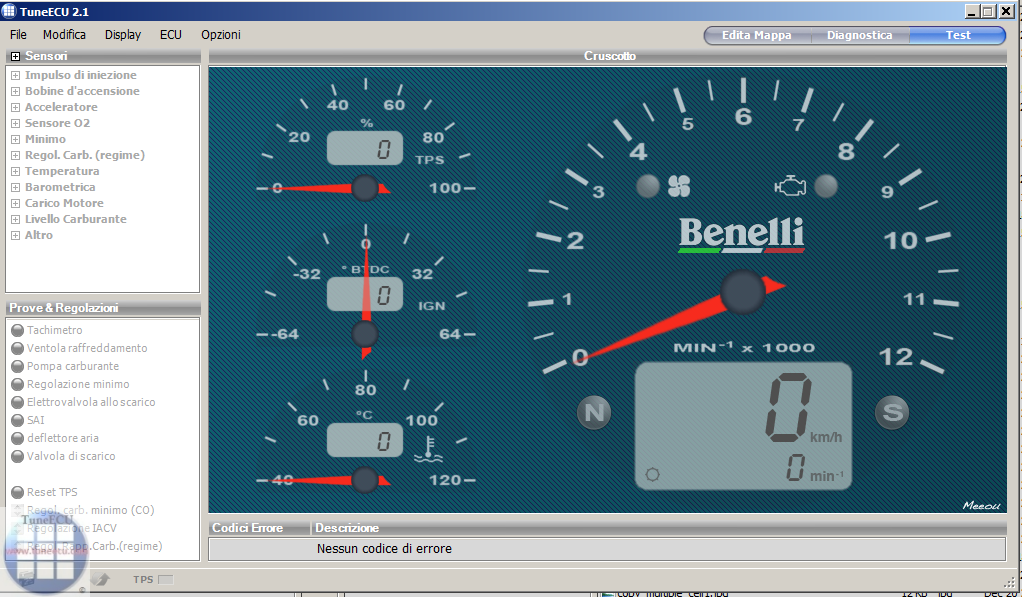

Walbro
ECU settings (Benelli TNT, Tornado 1130 & TREK)
Nota: versione di
Android, esclusivamente con FTDI cavo convertitore USB/RS232 12V
- Reset TPS: resets
the closed position of the throttle.
- Idle Fuel Trim (CO):
(double click on the line to access this
setting) lets
you adjust the fuel richness at idle.
- Global.Injection
correction: Double click on "Global.Inj.correction" and
adjust the parameters.
(Recording in the ECU will be
effective only after the value turns gray)
Tutte
le attenzioni del caso sono state prese nella creazione di questa
pagina,
tuttavia l'autore non garantisce la completezza e l'accuratezza delle
informazioni riportate.
***
