Ultimo Aggiornamento maggio-20-2020
Guida rapida
This description was created for
the
Windows version of TuneECU and can be applied
largely on the Android
version.
Software:
TuneECU per Windows
Updates and support for the Windows version were discontinued in 2016.
Please use the Android version of TuneECU.
TuneECU per Android
- Elenco di compatibilità
- mappa
With the Android version of TuneECU, OEM maps can be downloaded directly from the opened TuneECU app, saved on the Android device and edited also.
Hint:Unfortunately, the databases here cannot be kept up to date because I do not receive any information about new maps and updates.I'd have to spend hours and hours, tediously getting these.
Also, on Box Net, the old database from developer of TuneECU is no longer kept up to date..
What is kept up to date appears to be the location, from which the maps can be downloaded directly from the TuneECU app.
Istruzioni per l'installazione
in varie lingue - tunecu.net
Consigliato FTDI CDM (D2XX)
Driver - Virtual
COM Port Drivers older FTDI Drivers here
Sources for cable and/or Plug Adaptor:
- TwinPower, UK, for Triumph
- ECU VONIX, Italia, for Triumph, Aprillia, K?M, Ducati & Moto Guzzi.
- CJ Designs, US, for Triumph, K?M & Aprilia.
- Tuning Center Otto Leirer, Austria, K?M.
- SJK Digital, Germany, for Triumph
- OBD Auto, France, Triumph, Aprilia, K?M, Ducati & Moto Guzzi.
- USB/Serial Adapter Digitus DA-70156
- Lonelec, UK, Triumph, Aprillia, Benelli, K?M, Ducati & Moto Guzzi.
- MY-OBD Shop (Germany) Bluetooth Adapter Vgate V1.5 Mini OBD2
- Converter cable, USB / RS232, 12v (required
for Walbro ECU, when using the
Android version of TuneECU). or - Converter cable, USB / RS232 w/ Embedded
Electronics (required for Walbro ECU,
when using the Android version of TuneECU). - OBDLink Adapter LX, MX und MX+
- UniCarScan Adapter UCSI-2100
Guida rapida:
1 - Versione di Windows:Scarica la versione più recente di TuneECU. Decomprimi nella nuova cartella.
1.1 Versione di Android: Scaricare il software Android esclusivamente dalla "Google Play Store".
For the Android devices additional is a host-cable or host-adapter is required (also called
OTG-cable or OTG-adapter).
Informazioni per Android: QUI
2 - Ordina il cavo OBD-USB-KKL con chip FTDI per VAG (gruppo VW Audi).
2.1 Scarica i driver per il cavo con chip FTDI e installare i driver.(solo per Windows)
Windows7, Vista e XP: dopo il driver-download, scollegare la connessione a Internet,
Ora collegare il cavo.
Note: for Windows 8 from driver vers. 2.08.28 or higher, select here the driver package for
manual installation.
From driver version 2_08_30 also works with WIN 8 & 8.1, the automatic installation via
Windows driver update.)
.
2.2 For Walbro models required is only a RS232-computer-cable and the same AMP-Super-seal plug,
which is also used for the Benelli-Sagem models. Maybe You need nor a USB/RS232-converter.
This converter is required if your computer has no serial interface (RS232) has.
.
3 - Scarica qualsiasi/tutte le relative mappe per la tua moto.
Problems with the driver
installation (solo
per Windows) ?
For example, Windows reports: can not find driver software for this
device
Please read this post:
http://www.triumphrat.net/ecm-and-fi-tuning-help-tips-and-tricks/217097-tuneecu-cable-caution.html
posizione neutrale, il motore non deve essere acceso)
5 - Dalla voce ECU, selezionare Leggi Mappa. Quest'azione leggerà la mappa presente sulla ECU.
6 - Salvare la mappa originale con un nuovo nome. Preferibilmente in un nuovo file per le tue future mappe.
7 - Apri il file della mappa che si desidera caricare sull'ECU della moto.
8 - Invia la mappa all'ECU.Invia la mappa all'ECU.
Se
avete problemi di collegamento alla ECU, per prima cosa assicurarsi che
la batteria sia completamente carica. Quindi assicurarsi che il quadro
sia acceso e il tasto rosso kill switch sia impostato su ON.
Occasionally
it happens that the download fails, although was kept strictly to the
instructions.
It
turns out that it comes to these interruptions, when the battery
voltage falls below 12,5 volts,
even
when connected battery charger.
Apparently,
the power delivered to the modern battery chargers not prevent that.
It works perfectly when a second
12-volt car battery is connected.

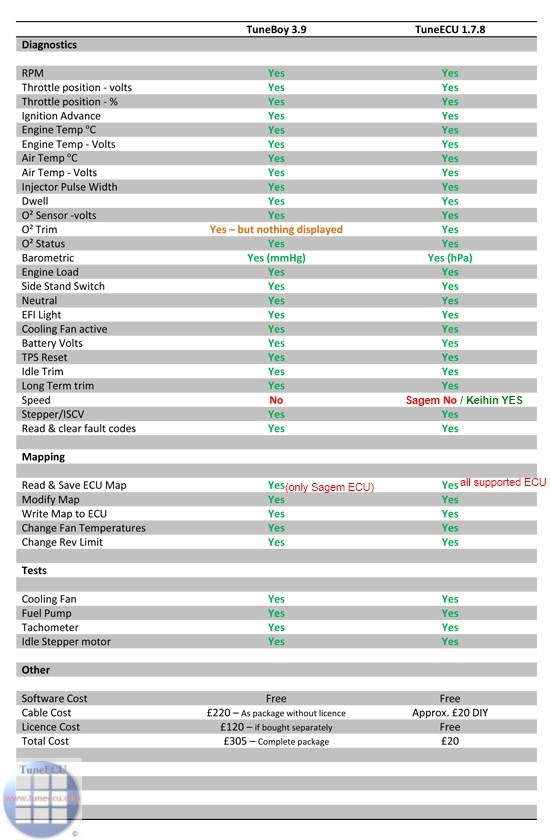

SI
- il cavo USB TuneBoy funzionerà con TuneECU.
SI
- il cavo seriale TuneBoy funzionerà con TuneECU. But is a USB-Serial-Adapter necessary,
which has a FTDI-chip-set. Good example is here the Digitus DA-70156
USB-Serial-Adapter.
SI
- The
ELM 327 (Bluetooth) works with TuneECU, but only
with the Android version.
Restriction: The
reading of the map from the ECU and the reprogramming
of the ECU,
is not available with a
Bluetooth-connection, for security reasons
Restriction
for the USB TuneBoy cable:
The
USB-TuneBoy cable works only with the ancient FTDI driver from
TuneBoy's own site.
The hardware id of TuneBoy cable is different vs. a generic/TuneECU
FTDI cable.
So even though both cables have same chip, TuneBoy cable needs the
matching driver.
For WIN8/8.1 unfortunately, the tuneboy driver is to install
only with a trick. See here.
The problem is the enforced driver signing in Windows8 &
Windows 8.1.
NO
- il cavo TuneECU non funzionerà con TuneBoy/TuneEdit
Tutte
le attenzioni del caso sono state prese nella creazione di questa
pagina,
tuttavia l'autore non garantisce la completezza e l'accuratezza delle
informazioni riportate.
***
FINE ***
