Extra accessories required for Benelli:


Cable for Sagem models:

To connect TuneECU with the Benelli ECU (Sagem) a custom-built adaptor cable is required
Pin assignment Fig. 2, and Fig. 4

To make up such a cable,the following components are required: (i) a diagnostic OBDII cable
with a 16-pin socket on the one side and flying  leads on the other (Fig. 2). This cable is commercially
available as an accessory in many OBD-motorsport shops (ii) a AMP SuperSeal 6-pin connector  (Fig.1).
The company Lonelec UK, offers complete adapter (Sagem models) for £ 16.99 plus postage.

To connect TuneECU with the Benelli ECU (Walbro) a custom-built cable is required.
This consists of a RS232 computer cable and the same AMP-Super-Seal-connector as for the Sagem models.
Pin assignment for Walbro models, see HERE
An RS232 computer cable, you get to various online platforms, and also in computer shops. A possibly required USB/RS232-converter as well. The converter is required if your computer has no serial interface (RS232) has.
Nota: utilizar la versión de Android, exclusivamente con FTDI convertidor USB cable/RS232
y el conector de 6 pines AMP Superseal.

Pin assignment for the above-linked FTDI USB / RS232 converter cable:

TX (White) -------------------- on PIN 5 AMP SuperSeal 6-pin connector
RX (Yellow)------------------- on PIN 2 AMP SuperSeal 6-pin connector
GND (Black)------------------ on PIN 6 AMP SuperSeal 6-pin connector

! NOTE: The cable colors of cables from other manufacturers may look different !

For the flashing of the Walbro ECU, in addition, an AMP Super Seal 2pin plug required, a kind of bridge,
details please ask in the special Benelli forums.
The 2-pin connector can be purchased from the same sources as the 6-pin connector, or known at the auction platforms.

Sources of supply for the AMP SuperSeal connector 6-pin, Serie 1.5.:

Company "Kalitec" Product No.: Kali-1006  As a complete kit, housing, seals, and connectors.

Or at the following companies as individual components

"TE Connectivity"
AMP SuperSeal Housing,
Mfr Part No. 282090-1
AMP SuperSeal Connectors,
Mfr Part No. 183035-1
AMP SuperSeal single
WIRE SEAL e.g. in yellow color,  Mfr Part No. 281934-2

Company  "RS"
AMP SuperSeal Housing,  Mfr Part No. 282090-1,  RS Stock No.  314-1227
AMP SuperSeal Connectors,
Mfr Part No. 183035-1, RS Stock No. 314-1334
AMP SuperSeal single WIRE SEAL e.g. in yellow color,  Mfr Part No. 281934-2, RS Stock No. 314-1154

6-pin AMP Super Seal Connector, complete set, including housing, gaskets and pins.

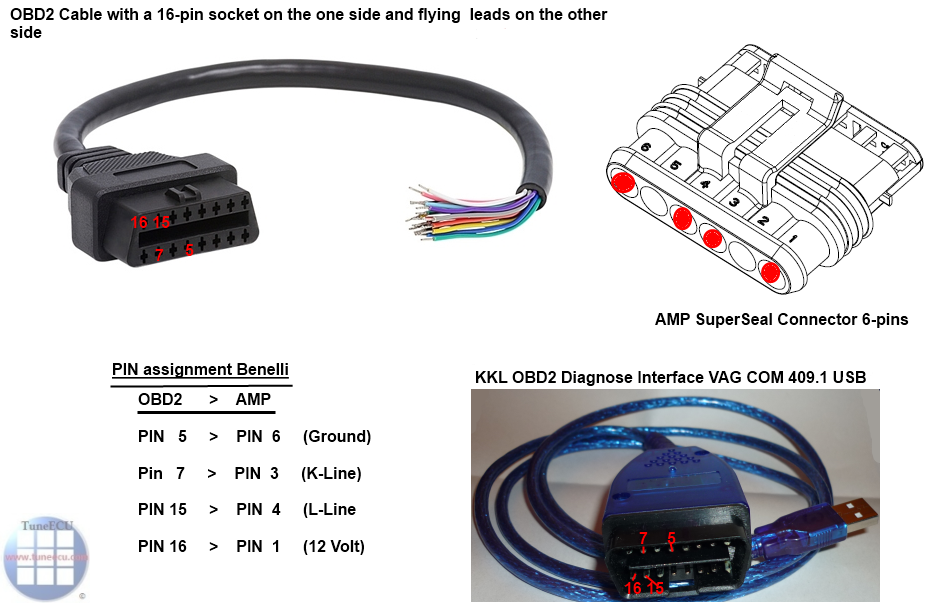

Pin assignment OBD2   >   AMP  SuperSeal Connector

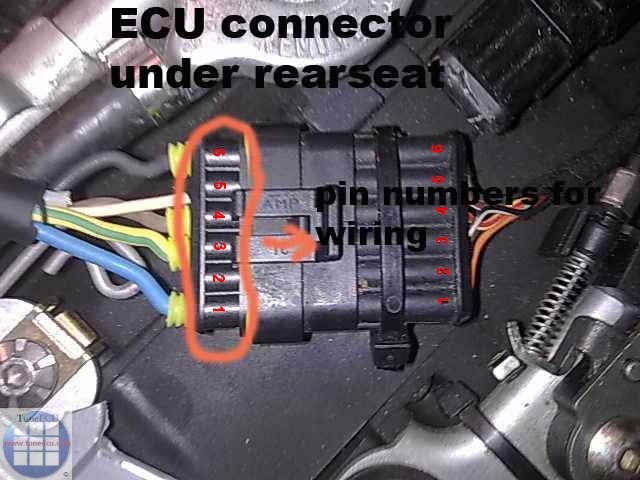

View of the connector, connected to the bike.

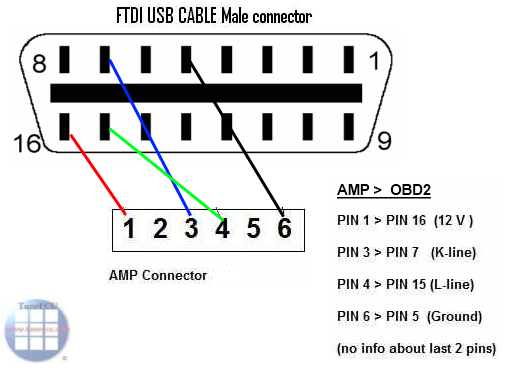

Pin assignment as a schematic representation


Who has disconnections when running engine, which can possibly help the Tip of "moto-abruzzo" from the Aprilia forum.  Link the cable shield with the ground pin of the OBD connector.
See the following picture.

Thanks "moto-abruzzo" from the Aprilia-Forum

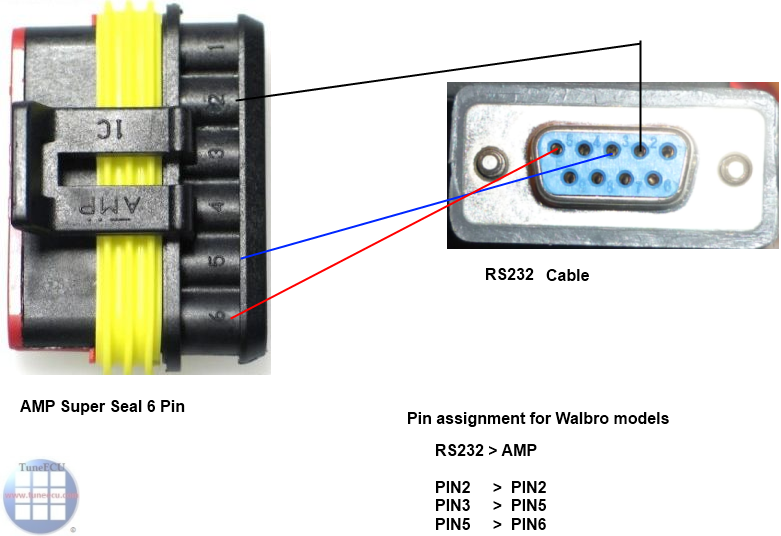

Pin assignment for Walbro ECU:

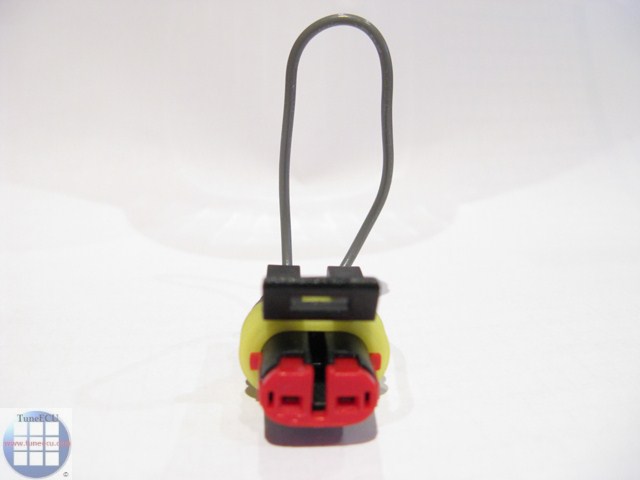

AMP Super Seal 2-pin connector , this in addition required is for the
flashing the Walbro ECU (TuneECU for Windows and Andriod).
More information in the special Benelli forums.

Aunque se ha tenido mucho cuidado en la creacion de este documento el autor no puede
garantizar completamente su contenido y que se ajuste completamente a la realidad.
