!! Important note !!
No Motobike Manufactor have had involvement in this product.
The use of a manufactures name and / or model designation to describe
the motorcycles on this site does not imply that the manufacturer endorses
the use of this application.
Le support concerne uniquement le logiciel (Android vers. only), aucun conseil ou préconisation ne sera donné sur l'usage des cartographies.
Hormis les bréves descriptions disponibles sur le site, aucun autre renseignement ne sera fourni sur les cartographies mises à disposition.

TuneECU Câble adaptateur nécessaire pour K?M:

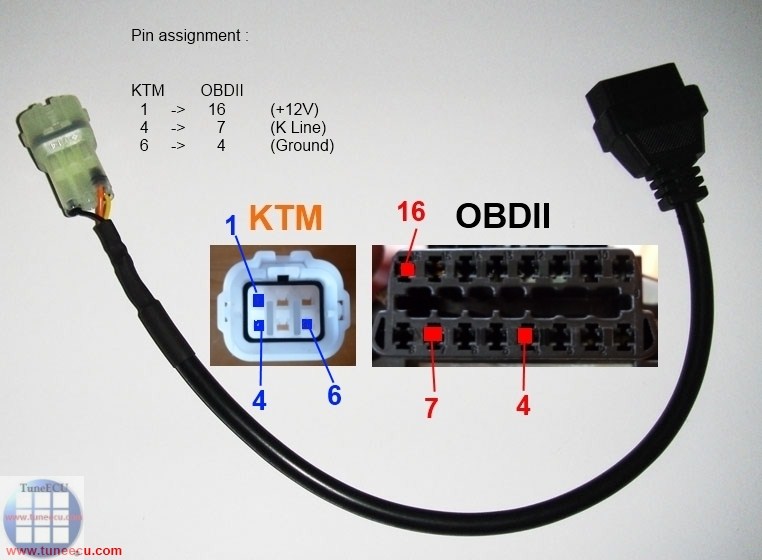

Câble : Le câble d'adaptation (Figure 1) est composé d'un connecteur OBD femelle cablée (Fig. 2) et d'un connecteur type Sumitomo 6 broches (Fig. 3).



***Fig.1***


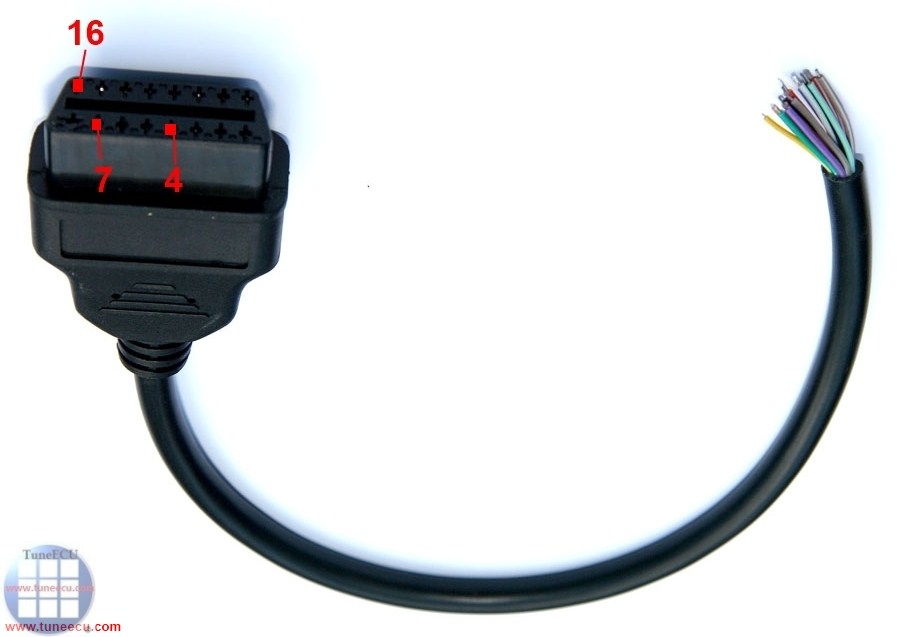

***Fig.2***

Connecteur utilisé sur
- 06-09 YZF-R6 faisceau d'injecteur secondaire (coté faisceau principal)
- 06 YZF-R6 faisceau d'injecteur (faisceau additionnel)
- Honda CBR600RR faisceau de câbles d'allumage
http://www.corsa-technic.com/
Item Title: "6-Way Plug Kit (B6AP) Sumitomo type"
Price: $2.65 plus Shipping
or Tuning Center Otto Leirer in 7442 Lockenhaus Austria, here is the direct Link .
Price € 3,50 plus Shipping
There is also a ready-configured cable, here's the Link .

Another source is the company X-MAS Motorcycle Electrics in Vienna
Item No. V-21330 (multi-connector 2.2 mm 6-pin) price at the time (Okt.2010) € 3.90,
shipping costs please contact X-MAS Motorcycle . Many thanks to Lars for this information.
OBDII individual components

Another source TUNE ECU CABLE KIT for the K?M engines, get e.g. here: http://www.cjdesignsllc.com
And here another source in UK  for a TUNE ECU CABLE KIT for the K?M engines:
http://www.zenoverland.com/bikebits/K?M_ecu_cable.html

Yet another source in UK for FTDI cable and/or K?M-adapter ​​:  Lonelec UK
Yet another source in Italia for FTDI cable and/or K?M-adapter ​​: ECU VONIX


***Fig.3***

Many thanks to Alain for the pictures.

Un lien pour se faire l'adaptateur compatible 1190/1290

Il peut parfois avoir des problèmes de déconnexion avec l'ECU K?M, notamment avec le moteur en marche.

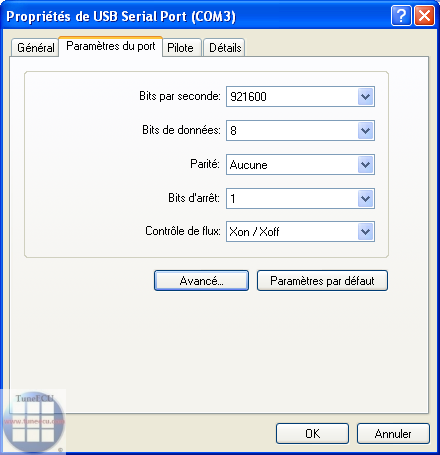

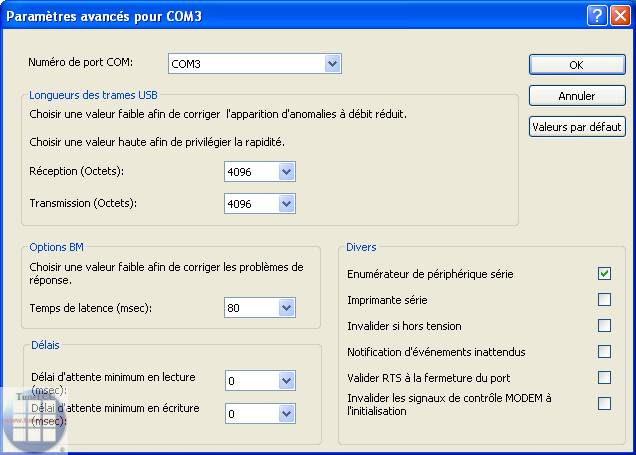

Une amélioration peut-être obtenue en modifiant les paramètres du port COM virtuel.
Les paramètres suivant sont un exemple qui ont aidé à résoudre ce problème pour certains utilisateurs.
Toutefois ces réglages n'apportent parfois aucune amélioration pour d'autres.
Ces paramètres sont gracieusement communiqués par "Tuning Center Otto Leirer" en Autriche.
Encore une fois un grand merci à Otto.

Another Tip, that can possibly help comes from "moto-abruzzo" from the Aprilia forum.
Link the cable shield with the ground pin of the OBD connector.
See the following picture.

Note: the picture shows the connection on pin 5 for Aprilia, K?M uses pin 4 as ground.

Thanks "moto-abruzzo" from the Aprilia-Forum

Another tip from "K?Mguy" from the K?M forum,Thanks K?Mguy

To avoid disconnection issues check and fix the following:

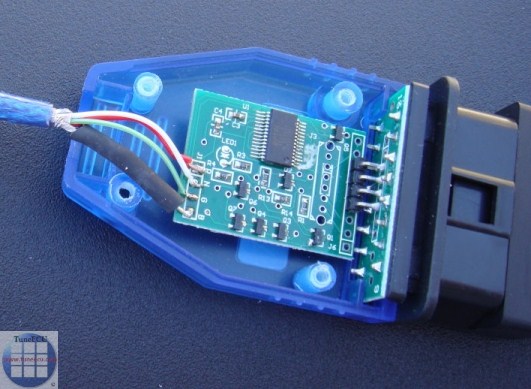

Make sure the shield of the USB cable is fixed to the negative of the cable.
See the wire and shield together in the heat shrink in the following picture.


He de-soldered the cable, stripped it back a bit, joined the shield and the negative and soldered it all back
on with some heatshrink around it.

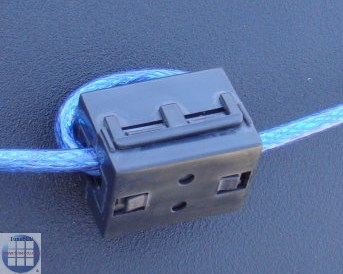

He also fitted a ferrite choke on the cable as you see here:


On his bike Tuneecu disconnected as soon as he started the engine, these 2 mods fixed the issue
and now it stays on no problem.

!! Important note !!
No Motobike Manufactor have had involvement in this product.
The use of a manufactures name and / or model designation to describe
the motorcycles on this site does not imply that the manufacturer endorses
the use of this application.

Tous les soins ont été apportés à la création sur cette page,
toutefois l'auteur ne peut garantir l'exhaustivité et l'exactitude de ces informations.
